How to Configure Entra/Azure for Brainshark SSO integration

Overview: Brainshark uses basic SAML which has the ability to create an account upon login and set identified variables (If autocreate is enabled in Brainshark) . Once the account is created, any future updates in Azure do NOT update the user in Brainshark. Microsoft doesn't natively support sending a claim with the Manager of the user.

Access link to STAGING: https://staging.brainshark.com/CompanyName

Access link to PROD: https://www.brainshark.com/CompanyName

Steps to Enable Basic SAML in Microsoft Entra: https://entra.microsoft.com

1. Add the Application:
   • Log in to the Microsoft Entra admin center as a Cloud Application Administrator.
   • Navigate to Identity > Applications > Enterprise applications > All applications.
   • Click New application.
   • Select Non-gallery application.
   • Enter a name for the application "Brainshark" and click Add.

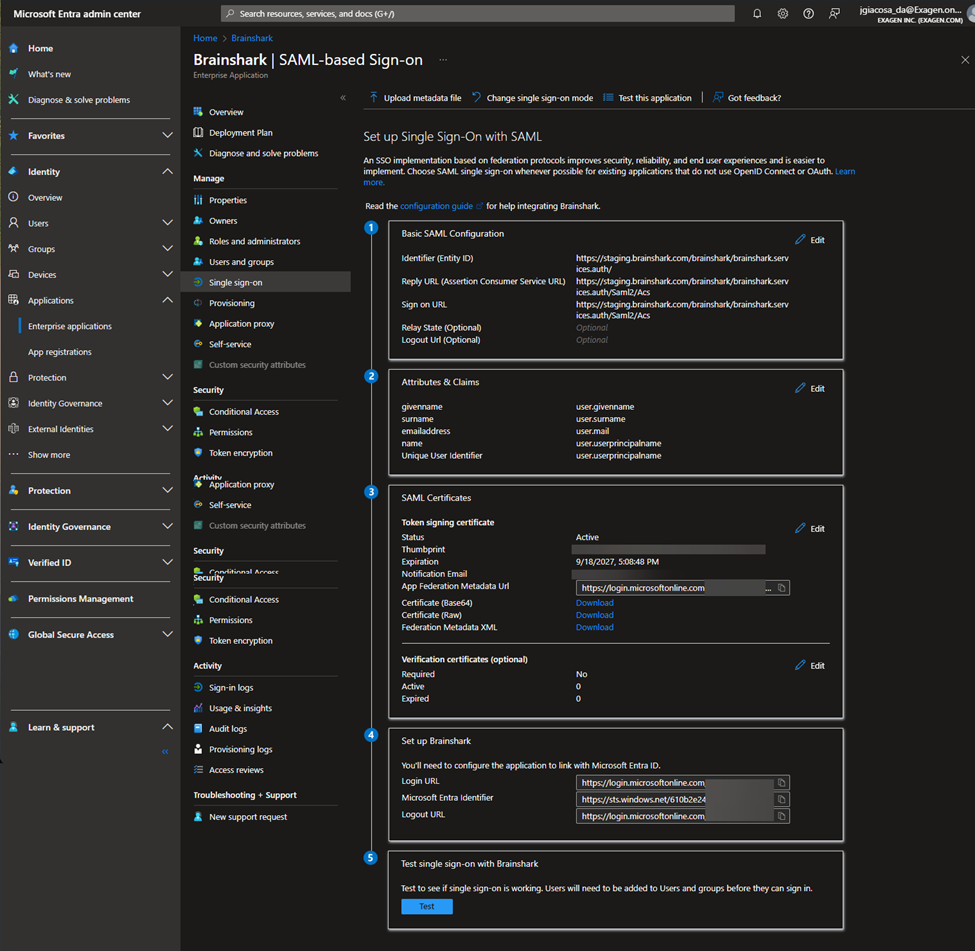

2. Configure Single Sign-On:
   • Select the newly added application.
   • In the Manage section, select Single sign-on.
   • Choose SAML.
3. Edit Basic SAML Configuration:
   • Click the Edit button under Basic SAML Configuration.
   • Fill in the required fields:
     • Staging Environment
       • Identifier (Entity ID): https://staging.brainshark.com/brainshark/brainshark.services.auth/
       • Reply URL (Assertion Consumer Service URL): https://staging.brainshark.com/brainshark/brainshark.services.auth/Saml2/Acs
       • Sign on URL: https://staging.brainshark.com/brainshark/brainshark.services.auth/Saml2/Acs
     • Production Environment
       • Identifier (Entity ID): https://www.brainshark.com/brainshark/brainshark.services.auth/
       • Reply URL (Assertion Consumer Service URL): https://www.brainshark.com/brainshark/brainshark.services.auth/Saml2/Acs
       • Sign on URL: https://www.brainshark.com/brainshark/brainshark.services.auth/Saml2/Acs

1. Download Federation Metadata XML:
   • Under SAML Certificates
   • Verify the Notification Email is set to "UserID@Domain.com"
   • click Download for Federation Metadata XML.
   • Save this file for later use.
2. Configure the Application:
   • These Steps are performed by Brainshark support team

Additional Considerations:

• Attribute Mappings: If necessary, Brainshark can configure attribute mappings to map attributes from Microsoft Entra to Brainshark attributes.
• Signing Certificates: You may need to upload the Brainshark certificate to Microsoft Entra if you are requiring the Authn request to be signed.  Brainshark always requires that the SAML responses are signed.
• Testing: After configuring SAML, test the integration to ensure it's working correctly.

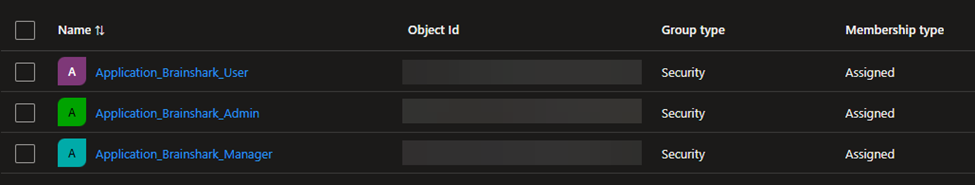

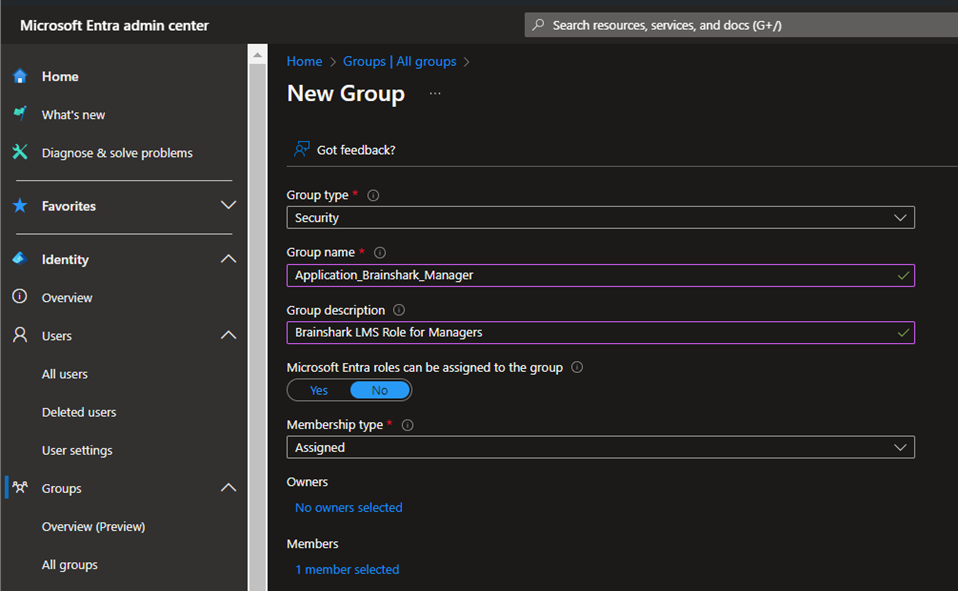

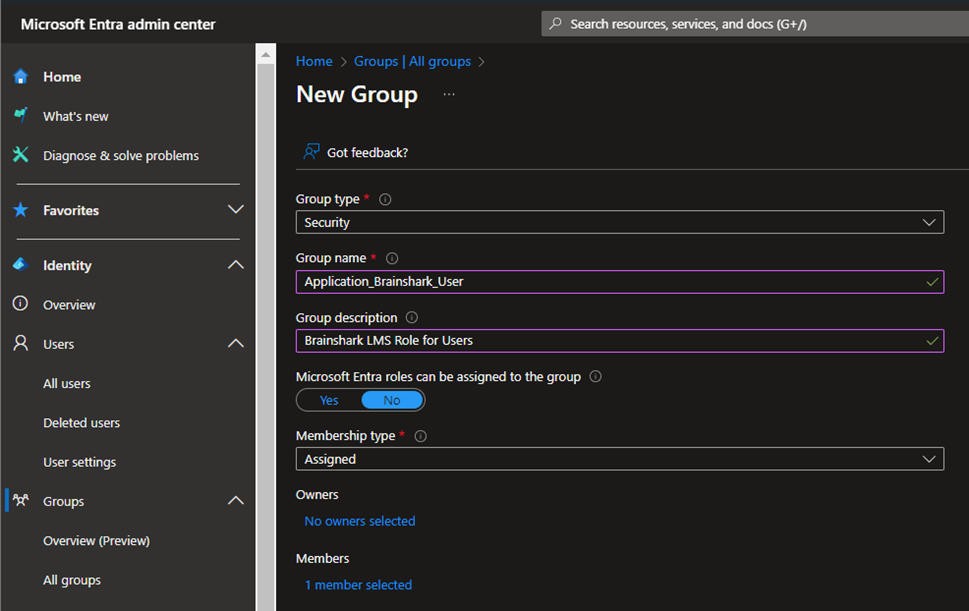

Create Entra Security Groups

Azure/Entra Security Group	Brainshark Role	Object ID
Application_Brainshark_Admin	Admin
Application_Brainshark_Manager	Manager
Application_Brainshark_User	User



• For Testing - Assigned "User 1"

• For Testing - Assigned "User 2"

• For Testing - Assigned "User 3"

Add the Groups to the Brainshark Enterprise Application

• Navigate to Enterprise Application | Brainshark | Users and Groups
• Select Add user/group
• Select appropriate Groups

Attributes & Claims

Microsoft Documentation: Customize SAML token claims - Microsoft identity platform | Microsoft Learn

Video: Overview of group assignment and claims in Entra ID | Microsoft

• Claims Mapping Policy 5 minutes in

Add a group claim

Group claims are used to make authorization decisions to access a resource by an app or a service provider. To add group claims;

• Navigate to Enterprise Application | Brainshark | Single sign-on
• Edit "Attributes & Claims"

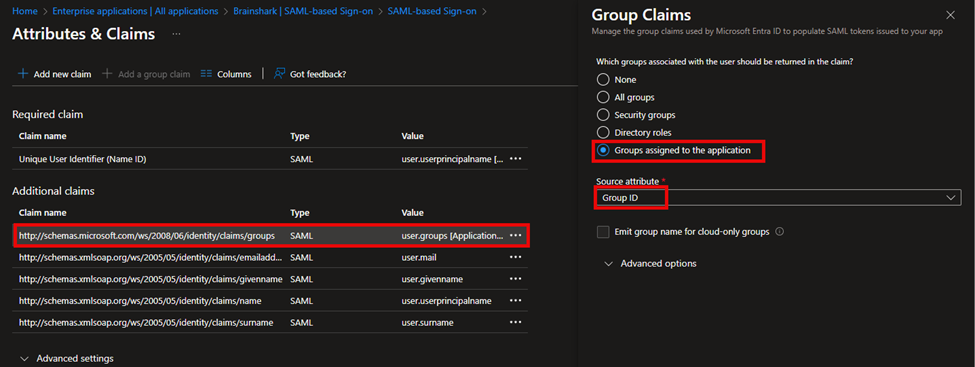

Add a Group Claim

• Select "Add a group claim"
• Select "Groups assigned to the application"
• Select Attribute: Group ID

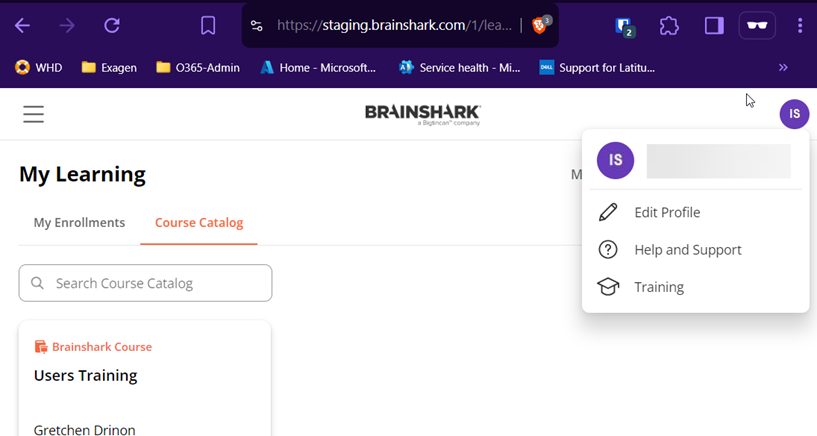

TEST SUCCESS: https://staging.brainshark.com/CompanyName



Security Group	User	Brainshark Role	Connection
Application_Brainshark_Admin	User 1	Admin	SUCCESS
Application_Brainshark_Manager	User 2	Manager	SUCCESS
Application_Brainshark_User	User 3	User	SUCCESS
NOT ASSIGNED To ABOVE GRP	User 4	N/A	FAIL (Expected)





Non-Provisioned User = Fail (Expected) this is good



2nd TEST

Security Group	User	Brainshark Role	Connection
Application_Brainshark_Admin	User 1	Admin	ADMIN
Application_Brainshark_Manager	User 2	Manager	MANAGER
Application_Brainshark_User	User 3	User	USER
NOT ASSIGNED To ABOVE GRP	User 4	N/A	N/A

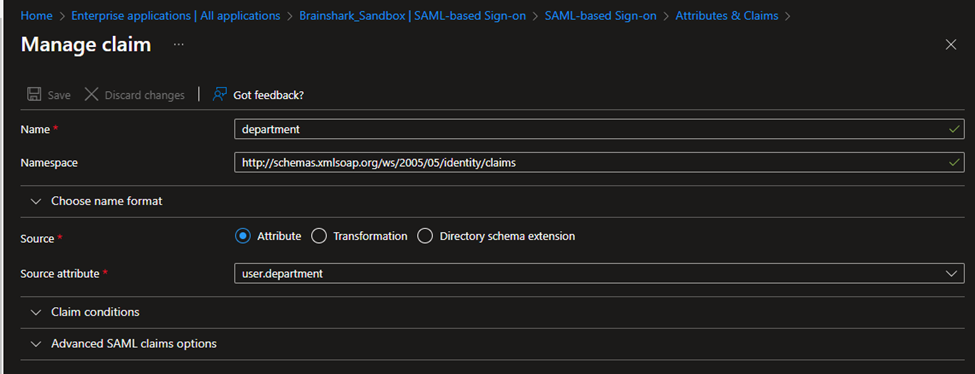

Pass Department and Manager Fields

DEPARTMENT
